Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | NanJiang Machinery |
| Model Number: | WFD-430 |
|
Payment & Shipping Terms:
|
|
| Price: | Negotiable |
| Packaging Details: | Steel Frames |
| Delivery Time: | 90 Days |
| Payment Terms: | T/T, L/C |
|
Detail Information |
|||
| Certification: | CE,ISO | Minimum Order Quantity: | 1 SET |
|---|---|---|---|
| Supply Ability: | 30 Sets/Month | Color: | Light Grey |
| Customized: | Yes | Condition: | New |
| Packaging: | Steel Frame | ||
| High Light: | 70Bags/min Roll Fed Paper Bag With Handle Machine,130Bags/min Roll Fed Paper Bag With Handle Machine,33kw flat handle paper bag machine |
||
Product Description

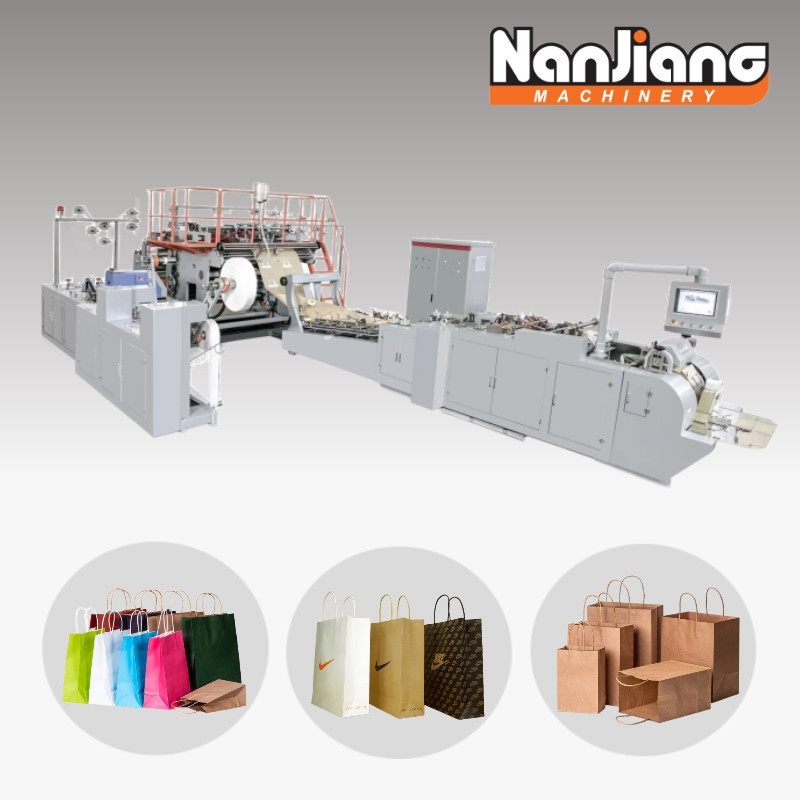

WFD-430 Fully Automatic Roll Fed Paper Bags With Twisted Handle Machine
Properties and uses:
This is special machine for the production of shopping bags (block bottom bags) with twisted rope handle made of paper. The material can be paper roll or printed paper roll. Whole machine is controlled by computer central control system with touch screen and servo motor for cut-off length control.
It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from roll, tube forming, cut-off, bottom forming, bottom glue, bag forming and final bag output. All steps are completed in-line; This machine is an idea equipment for Twist or Flat handle square bottom paper bag.
Technical parameter:
| Machine Model | WFD-430 |
| Paper Roll Width | 630-1330mm |
| Paper Bag Width (if without handle) |
220-450 mm (160-450 mm) |
| Paper Tube Length (if without handle) |
270-560mm (270-600 mm) |
| Bag Bottom Width | 80-200 mm |
| Paper Thickness (if without handle) |
80-150gsm (70-150 gsm) |
| Max. Roll material diameter | ￠1200 mm |
| Material Core Diameter | ￠76mm(3″) |
| Length of twisted rope (customizable) | 300-400 mm |
| Diameter of Twisted Rope | 4-6 mm |
| Handle Patch Length | 190 mm |
| Handle Patch Width | 35-50 mm |
| Handle patch Roll Diameter | ￠1000 mm |
| Paper Patch Roll Width | 70-100 mm |
| Paper GSM for Handle patch | 110-250gsm |
| Speed | 70-130Bags/min. |
| Total Power | 33KW |
| Machine Weight | 19000KG |
| Machine Dimension (L*W*H) | 16000 x 4800 x 2600 mm |
