Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | NanJiang Machinery |
| Certification: | ISO9001:2015; CE |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Steel Frames |
| Delivery Time: | 90 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 Sets/Month |
|
Detail Information |
|||
| Model Number: | WFD-430B | Warranty: | 2 Years |
|---|---|---|---|
| Customized: | Yes | Color: | Light Grey |
| Condition: | New | Computerized: | Yes |
| Bag Type: | Inside/Outside Flat Handle Paper Bag | ||
| High Light: | 135 Bags/min Flat Handle Paper Bag Machine,80mm paper bag making machine with flat handle,200mm paper bag making machine with flat handle |
||
Product Description

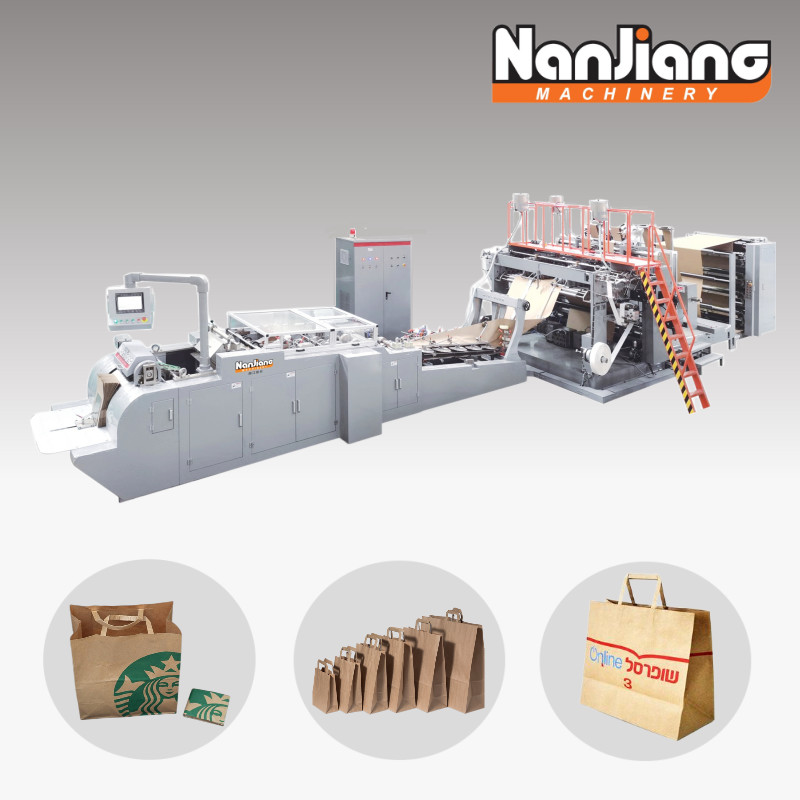

WFD-430B Full Automatic Paper Bag with Inside/Outside Flat Handle Making Machine
Properties and uses:
WFD-430B Fully Auto Square bottom paper bags with flat-rope handles, By implementing steps including printing, handle making, handle application, tube forming, tube cutting and bottom forming within a fully automatic process, this machine can effectively save labor costs. It is an idea machine for making inside flat handle paper carrier bags.
It is the most advanced machine for the production of shopping bags with inside flat handle. The material can be paper roll or printed paper roll. Whole machine is controlled by computer central control system with touch screen and servo motor for cut-off length control.
It can produce a variety of small, medium and large handled bags in one process and effectively save labor costs. Distinct flat-handle making process and special bag counting function greatly improve packing efficiency of finished paper bags.
Technical parameter:
| Machine Model | WFD-430B |
| Paper Roll Width | 630-1290mm |
| Paper Bag Width | 220-430 mm |
| Paper Tube Length | 280-600mm |
| Bag Bottom Width | 80-200 mm |
| Paper Thickness | 80-150gsm |
| Max. Roll material diameter | ￠1200 mm |
| Material Core Diameter | ￠76mm(3″) |
| Size of Flat Belt | 15mm |
| Flat Handle Rope Height | 80mm |
| Handle Patch Width | 55mm |
| Handle Width | 58-86mm |
| Paper GSM for Handle patch | 80-120gsm |
| Handle Patch Length | 170 mm |
| Handle Patch Width | 85mm |
| Handle patch Roll Diameter | 800 mm |
| Paper Patch Roll Width | 70-100 mm |
| Max. Production Speed | 135 Bags/min |
| Total Power | 50KW(if with printing) |
| Machine Weight | 23000KG |
| Machine Dimension (L*W*H) | 14000 x 5000 x 3300 mm |
